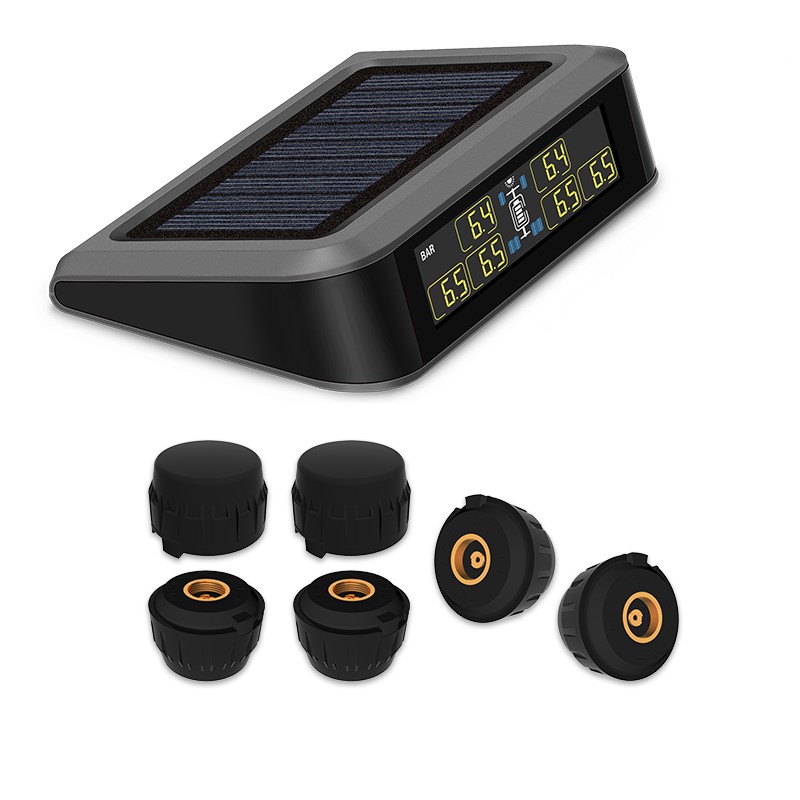

4-6 Tyres Wireless Solar TPMS For Vehicles – External Sensors

TPMS monitors the air pressure and temperature of tyres on vehicles and alerts the driver as it could create unsafe driving conditions when the:
1) tyre pressure is too low or high and
2) tyre temperature is too high

Features:
– This product is designed for all vehicles with 4-6 wheels, including caravans and trailers.
– Display monitor uses solar energy or mini port via USB for charging.
– Display all 4/6-tyres pressure and temperature simultaneously in real-time.
– Auto alarm when tyre pressure or temperature is abnormal and sensor battery is low or must be replaced.
– Replaceable sensor battery.

Adjustable Functions:
– Display tyre pressure in BAR or PSI and temperature in °C or °F
– High and low tyre pressure and temperature setting
– Tyre rotation and exchange setting.

Specifications:
Display Monitor Parameters:
Size (L x W x H) : 125 x 75 x 29mm
Working Temp : -20°C – 80°C
Input Voltage : DC 5V
Transmitting Frequency 433.92MHz
Battery Capacity: 2200mAh

External Sensor Parameters:
Size (L x W x H) : 23 x 16mm
Working Temp : -40°C – 105°C
Pressure Range : 0 – 8bar
Pressure Measurement Accuracy : 0.1bar
Temperature Measurement Accuracy : 3°C
Battery Lifespan : 2 years (driving 3-4 hours per day)
Transmitting Frequency 433.92MHz

Installation:
Display monitor:
– Self

External Sensors:
– Self or Fitment Centre

Wheel balancing:
Recommended

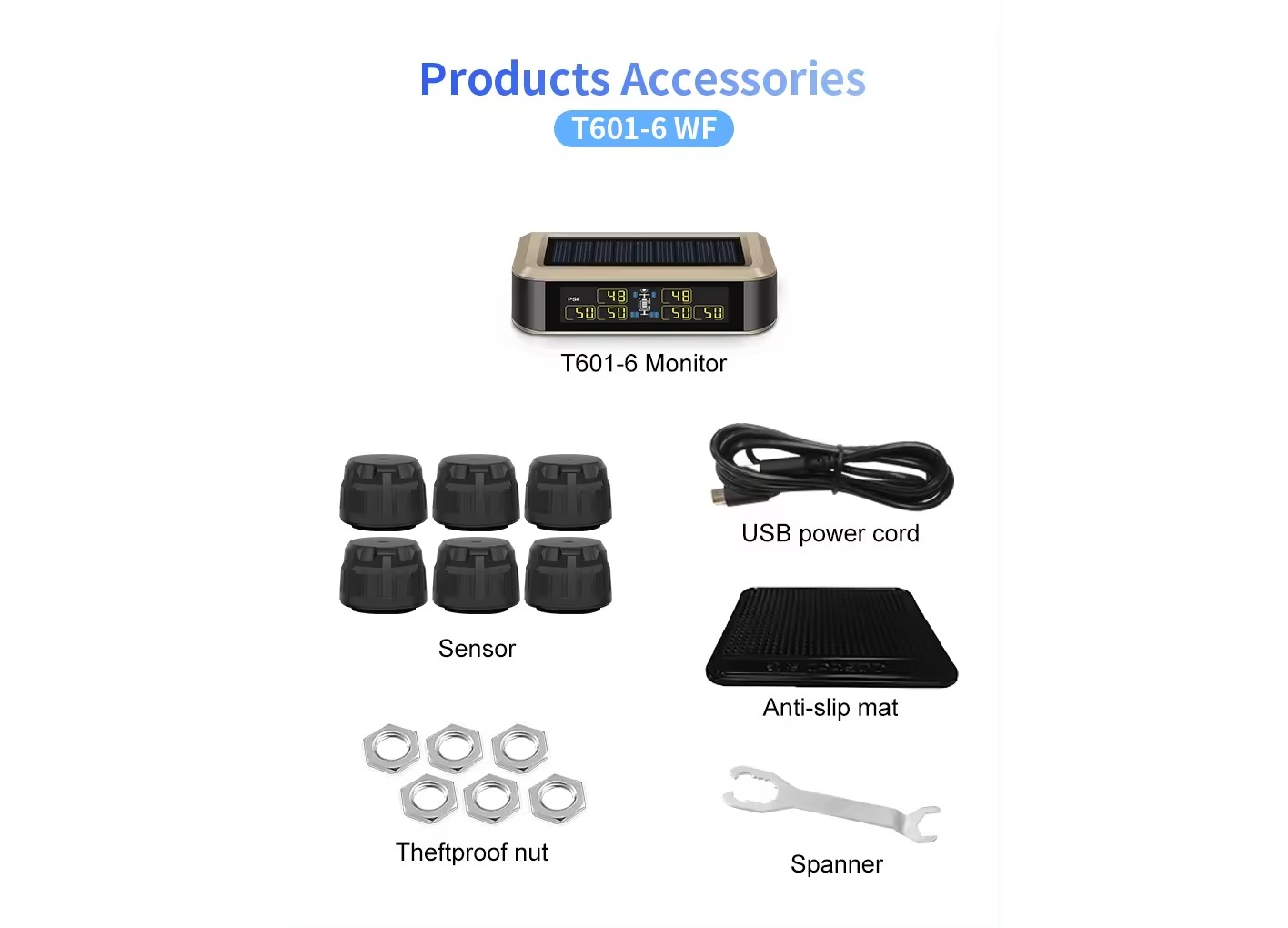

What’s in the box
1 x T601-6 Monitor
6 x External Sensor
6 x Theftproof Nut
1 x USB Power Cord
1 x Anti-slip Mat
1 x Spanner
1 x Installation Manual & Caution Label
