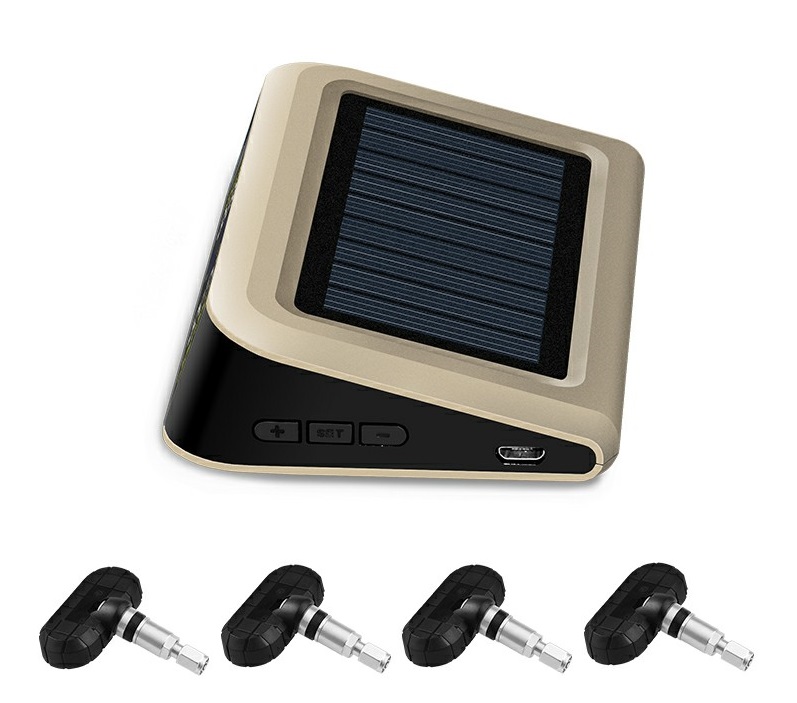

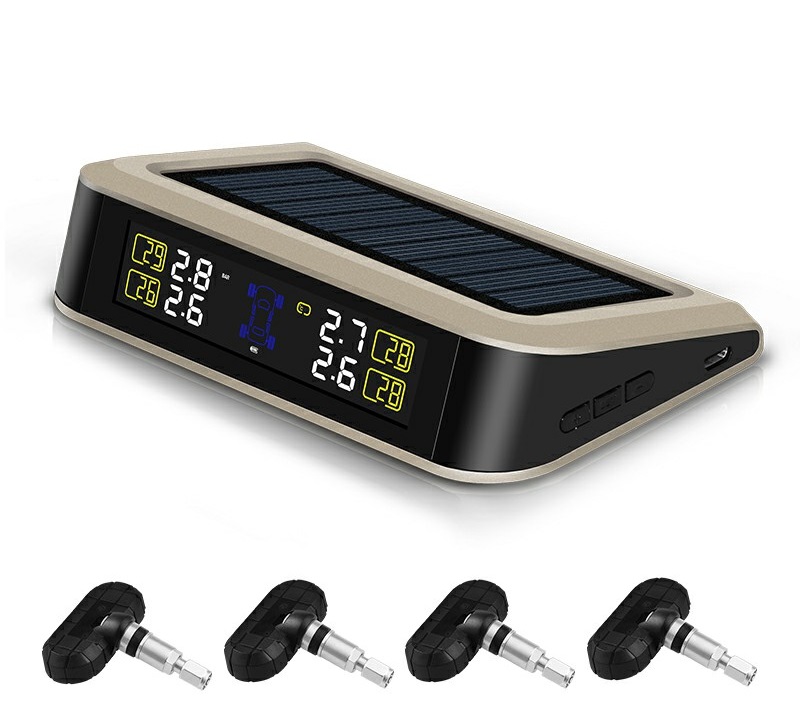

4-Tyres Wireless Solar TPMS for Vehicles – Internal Sensors

TPMS monitors the air pressure and temperature of tyres on vehicles and alerts the driver as it could create unsafe driving conditions when the:
1) tyre pressure is too low or high and
2) tyre temperature is too high

This product is designed for any vehicle and the monitor is usually placed on the dashboard of the vehicle. (Refer to the display monitor size in the specifications).

Features:
– Designed for all vehicles with 4-wheels.
– Display monitor uses solar energy or mini port via USB for charging.
– Display all 4-tyres pressure and temperature simultaneously in real-time.
– Auto alarm when tyre pressure or temperature is abnormal and sensor battery is low or must be replaced.
– Replaceable sensor battery.

Adjustable Functions:
– Display tyre pressure in BAR or PSI and temperature in °C or °F
– High and low tyre pressure and temperature setting
– Tyre rotation and exchange setting.

Specifications:
Display Monitor Parameters:
Size (L x W x H) : 125 x 75 x 29mm
Working Temp : -20°C  80°C
Input Voltage : DC 5V
Transmitting Frequency 433.92MHz
Battery Capacity: 2200mAh

Internal Sensor Parameters:
Size (L x W x H) : 74 x 32 x 15mm
Working Temp : -40°C  105°C
Pressure Range : 0 – 8bar
Pressure Measurement Accuracy : ± 0.1bar
Temperature Measurement Accuracy : ± 3°C
Battery Lifespan : ± 5-6 years (driving 3-4 hours per day)
Transmitting Frequency 433.92MHz

Installation:
Display monitor:
– Self

Internal Sensors:
Tyre Fitment Centre

Wheel balancing:
Compulsory

What’s in the box
1 x T601 Monitor
4 x Internal Sensor
4 x Valve
1 x USB Power Cord
1 x Anti-slip Mat
1 x Spanner
1 x Installation Manual & Caution Label
