TPMS monitors the air pressure and temperature of tyres on vehicles and alerts the driver as it could create unsafe driving conditions when the:
1) tyre pressure is too low or high and
2) tyre temperature is too high
This product is designed for specific Toyota vehicles and fits in the blind hole of the dashboard (Refer to the display monitor size in the specifications).
Features:
– Display monitor receives power via vehicle’s fuse box.
– Display all 4-tyres pressure or temperature simultaneously in real-time.
– Auto alarm when tyre pressure or temperature is abnormal and sensor battery is low or must be replaced.
– Replaceable sensor battery.
Adjustable Functions:
– Display tyre pressure in BAR or PSI and temperature in °C or °F
– High and low tyre pressure and temperature setting
– Tyre rotation and exchange setting.
Specifications:
Display Monitor Parameters:
Size (L x W x H) : 34 x 23.5 x 44mm
Working Temp : -20°C 80°C
Input Voltage : DC 8V 16V
Transmitting Frequency 433.92MHz
Sensor Parameters:
Size (L x W x H) : 74 x 32 x 15mm
Working Temp : -40°C 105°C
Pressure Range : 0 – 8bar
Pressure Measurement Accuracy : ± 0.1bar
Temperature Measurement Accuracy : ± 3°C
Battery Lifespan : ± 5-6 years (driving 3-4 hours per day)
Transmitting Frequency 433.92MHz
Installation:
Display monitor:
– Self or Fitment Centre (recommended)
Internal Sensors:
Tyre Fitment Centre
Wheel balancing:
Compulsory

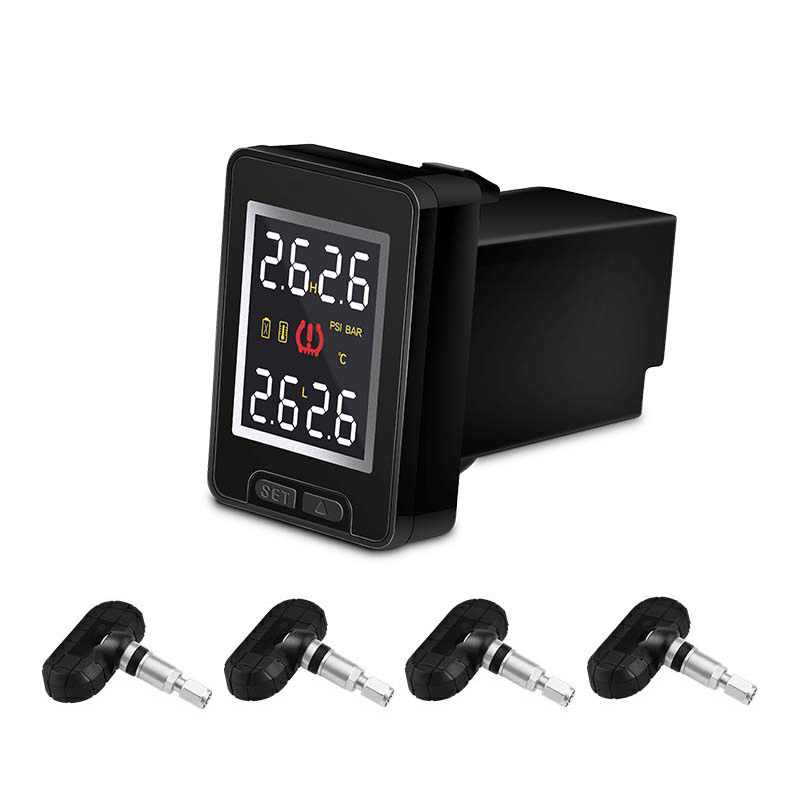

What’s in the box
1 x UP12 Display monitor
4 x Internal Sensor
4 x Valve
1 x Power Cable
1 x Spanner
1 x Installation Manual & Caution Label
Stefan –
Good quality product, easy to install and excellence service received. Will recommend to family and friends.
Johan –
Fits perfect in my GD-6. Easy DIY installation of monitor. Highly recommended.
pierre –
Installed in my vehicle and works perfectly. I have not seen any glitches. using the TPMS it is always accurate and it fits perfectly in my Toyota Hilux GD6 blank switch holes.
Jacques –
Werk goed in my Hilux en vrou se Fortuner. Goeie waarde vir geld in vergelyking met n band se prys.
Thomas –
Fits perfectly in Toyota Hilux GD6 blank switch holes.
Display is bright and its easy to read each tyres pressure
Easy to install display when you know what you are doing.
Sensors need to be installed inside the wheels and you need to balance the wheels afterwards which adds a few rand to the upgrade (Its worth every cent)
Easy to adjust settings (Upper and lower pressure alarms, psi/bar etc. )
I can now drive without stopping to check my tyre pressures after hitting a pothole and ensure that the petrol jockey inflates my tyres to the correct pressure at the fuel station without getting out of my bakkie
Francois –
In my GD-6 geinstalleer, baie tevrede en maklik om te doen.
Mathew –
Fits really well in my Legend 45 Hilux D4D. The blank switch is a bit longer than my GD6 Fortuner however, I couldn’t drive without a TPMS ever again.
Thanks for the awesome service and installation guidelines AET!
